FIRE FIGHTING PUMPS

Product Code : cnk-308

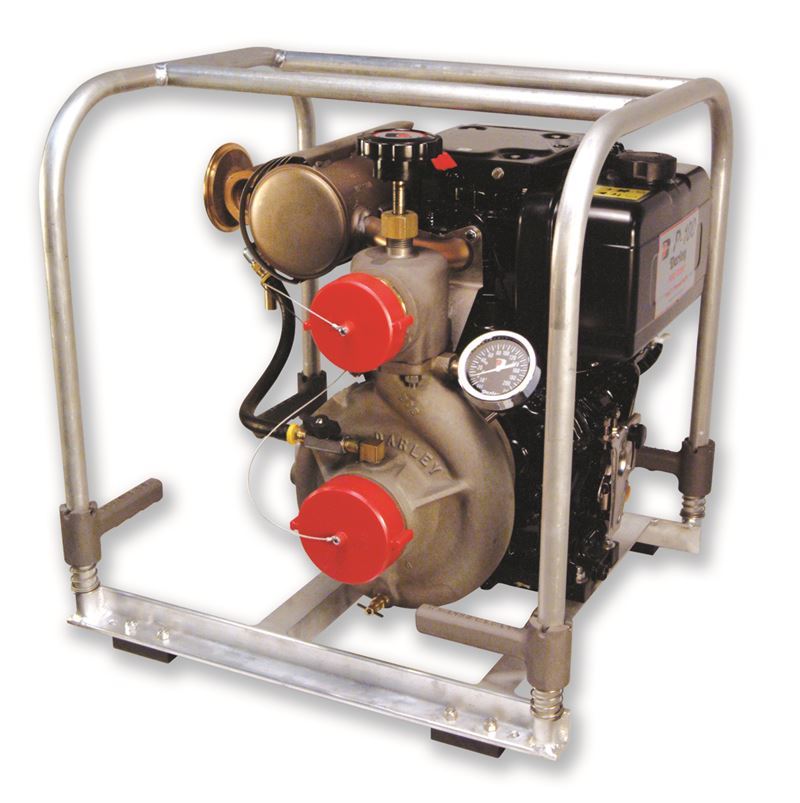

1-1/2AGE 10YD DIESEL PORTABLE PUMP

Medium Pressure, Medium Volume, Gear Driven, Engine Mounted

FEATURES
Yanmar Diesel L100: 4 cycle, 10 HP, 1 cylinder, recoil rope start back-up,
Hard anodized aluminum alloy casing and discharge valve
Aluminum alloy gear case and engine adapter
Stainless steel impeller shaft
Mechanical seal
Bronze impeller and wear rings
Heat treated alloy steel helical gears
Ball bearing construction
Built-in discharge check valve
Adjustable discharge valve
Adjustable throttle
Exhaust primer
2" NPT suction
2-1½" NPT discharges

 PUMP PERFORMANCE

120 gpm (454 L/M) @ 75 psi (5.7 bar)
75 gpm (284 L/M) @ 125 psi (8.6 bar)
20 gpm (76 L/M) @ 145 psi (10.0 bar)

DIMENSIONS
24"L x 21½"W x 24½"H
175 lbs. (80 kg)

APPLICATIONS
Booster Reel
Light Duty Brush Truck

PUMP PERFORMANCE
120 gpm (454 L/M) @ 75 psi (5.7 bar)
75 gpm (284 L/M) @ 125 psi (8.6 bar)
20 gpm (76 L/M) @ 145 psi (10.0 bar))

OPTIONAL
12 volt electric start and alternator
