FIRE FIGHTING PUMPS

Product Code : cnk-307

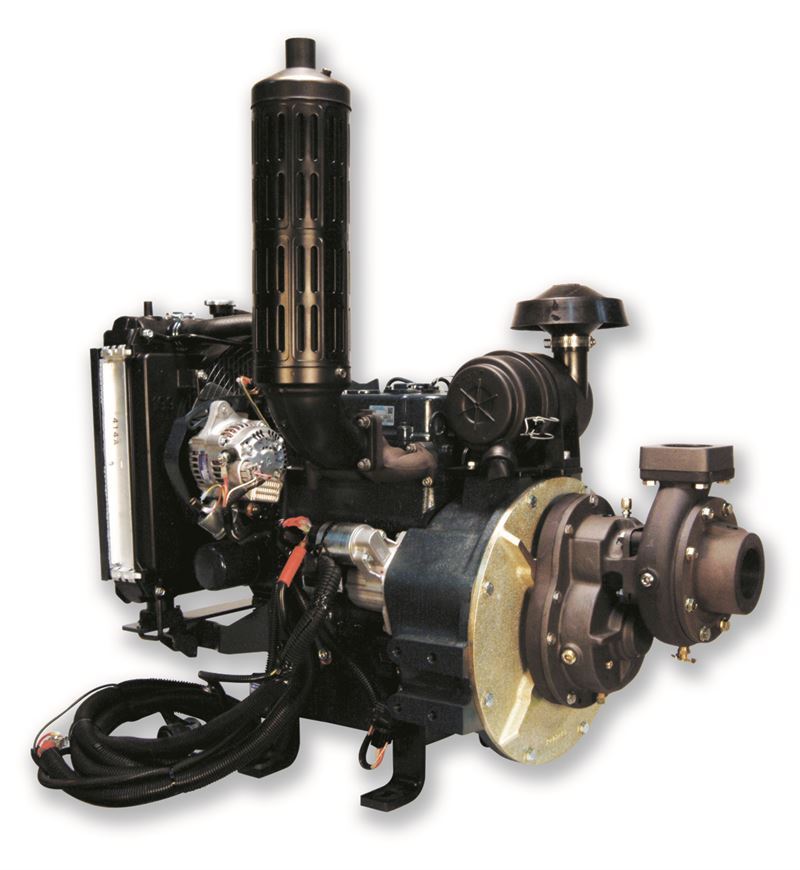

DARLEY 10HP DIESEL ENGINE PORTABLE (1-1/2AGE 24K)

High Pressure, Low Volume, Gear Driven, Engine Mounted

FEATURES
Aluminum alloy casing and discharge valve
Aluminum alloy gear case and engine adapter
Bronze impeller and wear rings
Stainless steel impeller shaft
Heat treated alloy steel helical gears
Ball bearing construction
2" NPT suction
2-1½" NPT or 1-2½" NPT discharges
Skid base

ENGINE
2BE10YDNL100: 4 cycle, 10 HP, 1 cylinder, recoil rope start back-up, optional 12 volt electric start and alternator

DIMENSIONS
36"L x 22"W x 26"H
371 lbs. (168 kg)

APPLICATIONS
Booster Reel
Multiple Hand Lines
Transfer and Supply
Wildland/Attack Fire Suppression


PUMP PERFORMANCE
120 gpm (454 L/M) @ 130 psi (8.9 bar)
75 gpm (284 L/M) @ 220 psi (15.2 bar)
25 gpm (94 L/M) @ 335 psi (23.1 bar)
Max pressure 400 psi

OPTIONS

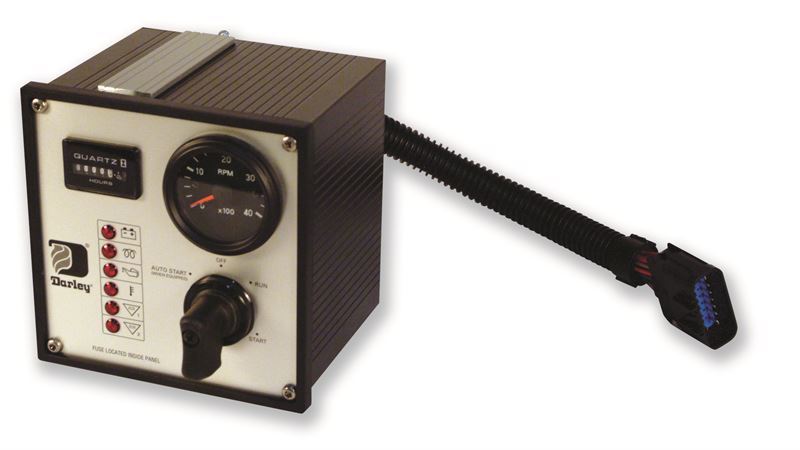

Dual Panels
Electric and manual throttles
Rotary vane primer
