FIRE FIGHTING PUMPS

Product Code : cnk-291

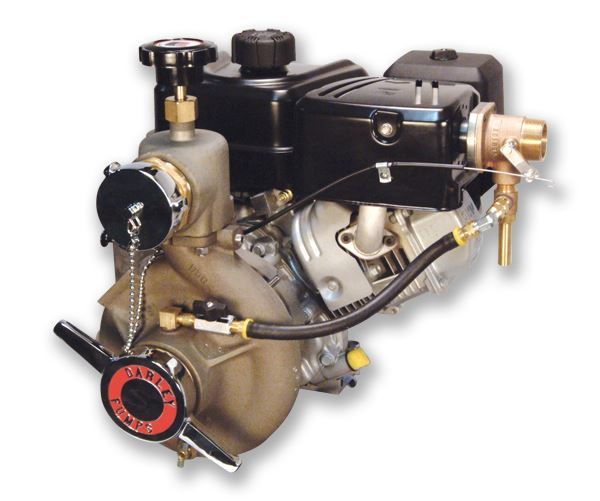

DARLEY 10HP GASOLINE ENGINE PORTABLE (2BE 10V)

Medium Pressure, High Volume, Direct Drive, Engine Mounted

FEATURES
Hard anodized aluminum casing and discharge valve
Bronze impeller
Mechanical seal
Exhaust primer
Fold-away carrying handles
Built-in discharge check valve
Adjustable discharge valve
Adjustable throttle
3" NPTM suction
2½" NPT discharge

ENGINE
Briggs & Stratton: 305CC Vanguard 10 HP, 4 qt. fuel tank, 12-volt starter, 10 amp alternator, recoil rope start back-up

DIMENSIONS
26"L x 21"W x 20"H

WEIGHT
140 lbs. (64 kg)

PUMP PERFORMANCE
250 gpm (1533 L/M) @ 15 psi (1.0 bar)
150 gpm (567 L/M) @ 50 psi (3.4 bar)
50 gpm (189 L/M) @ 95 psi (6.6 bar)

APPLICATIONS
Dewatering
Light Duty Brush Truck
Transfer and Supply

OPTIONS
Discharge hose
Gauge, battery, adapters and caps
