FIRE FIGHTING PUMPS

Product Code : cnk-285

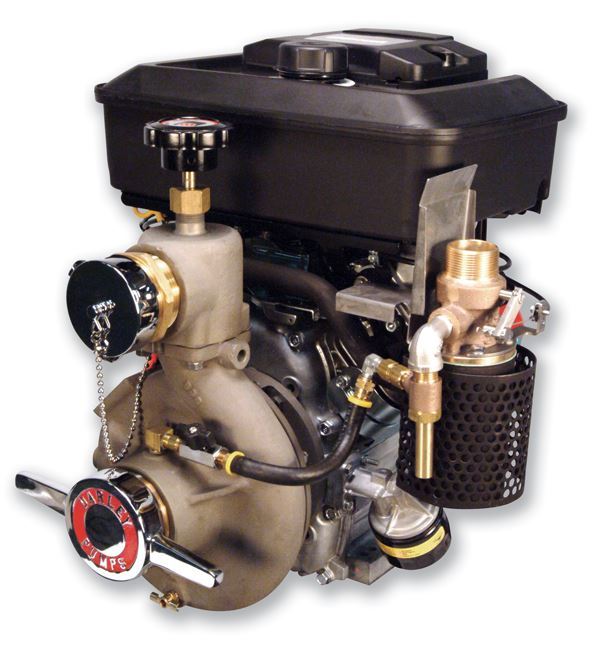

DARLEY 13HP GASOLINE ENGINE PORTABLE PUMP (2BE 13V-TWIN)

Medium Pressure, Hihg Volume, Gear Driven, Engine Mounted

FEATURES
Electric start with recoil rope back up
Exhaust primer, bronze impeller and wear rings
Stainless steel shaft
Discharge head with check valve
Base with fold away carrying handles
Aluminum alloy gear case and engine adapter
Heat treated alloy steel helical gears
Adjustable throttle
3" NPT suction
2-1½" NPT discharges
ENGINE
Briggs & Stratton Vanguard: 13 HP, V-twin, 8.35 qt. gas tank, 12-volt starter, 16 amp regulated alternator, recoil rope start back-up

DIMENSIONS
27"L x 21"W x 23"H

WEIGHT
145 lbs. (66 kg)

PUMP PERFORMANCE
300 gpm (1135 L/M) @ 15 psi (1 bar)
150 gpm (567 L/M) @ 75 psi (5.8 bar)
80 gpm (302 L/M) @ 100 psi (6.9 bar)

APPLICATIONS
Light Duty Brush Truck
Booster Tank Fill
Transfer and Supply

OPTIONS
Gauge, battery, adapters and caps
