FIRE FIGHTING PUMPS

Product Code : cnk-283

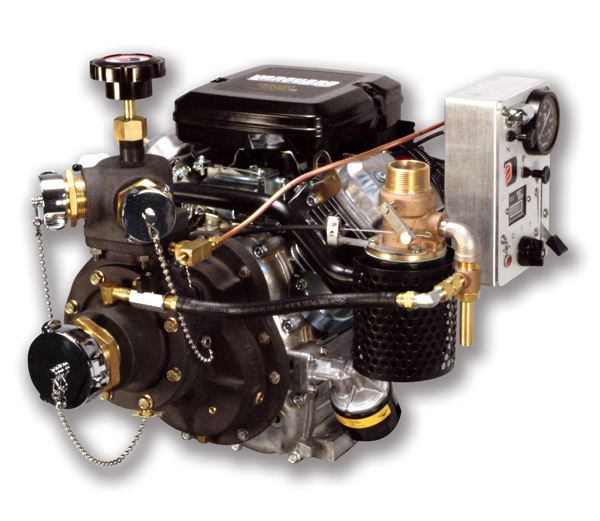

DARLEY 18HP GASOLINE ENGINE PORTABLE PUMP (1-1/2AGE 18V)

High Pressure, Medium Volume, Gear Driven, Engine Mounted


FEATURES
Aluminum alloy casing and discharge valve
Aluminum alloy gear case and engine adapter
Bronze impeller and seal ring
Stainless steel impeller shaft
Mechanical seal
Heat treated alloy steel helical gears
Ball bearing construction pump and engine
Built-in discharge check valve
Adjustable discharge valve
Fold-away carrying handles
Exhaust primer
2" NPT suction
2-1½" NPT or 1-2½" NPT discharges
ENGINE
Briggs & Stratton Vanguard: 4 cycle, 18 HP, V-twin, OHV, 8.35 qt. fuel tank, replaceable oil filter, 34.75 cu. in. displacement, 12-volt starter, recoil rope start back-up, 16 amp regulated alternator

DIMENSIONS
27"L x 21"W x 25"H

WEIGHT
145 lbs. (66 kg)

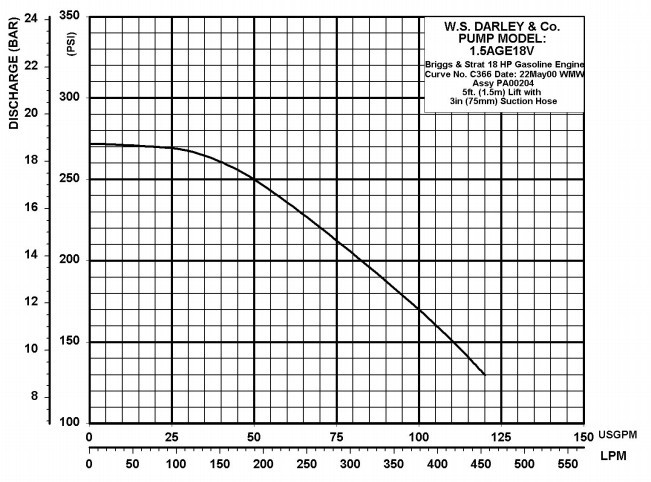

PUMP PERFORMANCE
120 gpm (454 L/M) @ 130 psi (9.0 bar)
100 gpm (757 L/M) @ 170 psi (11.7 bar)
50 gpm (189 L/M) @ 250 psi (17.2 bar)

APPLICATIONS
Booster Reel
Multiple Hand Lines
Wildland/Attack Fire Suppression

OPTIONS
Gauge, battery, adapters and caps
