FIRE FIGHTING PUMPS

Product Code : cnk-284

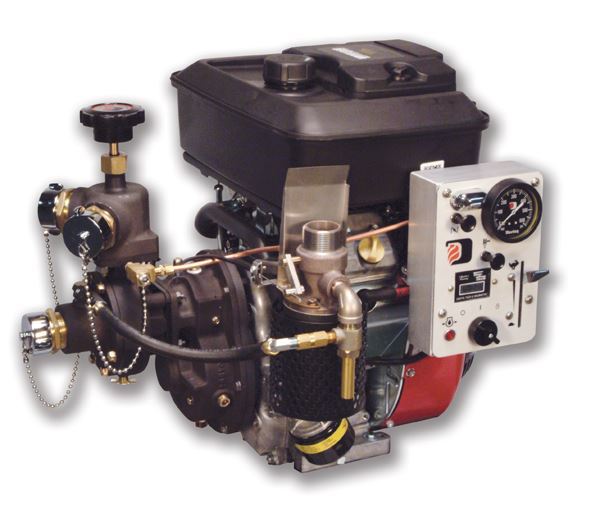

DARLEY 18HP GASOLINE ENGINE PORTABLE PUMP (1-1/4AGE 18V)

High Pressure, Low Volume, Gear Driven, Engine Mounted

FEATURES
Aluminum alloy casing and discharge valve
Aluminum alloy gear case and engine adapter
Bronze impeller and seal ring
Stainless steel impeller shaft
Mechanical seal
Heat treated alloy steel helical gears
Ball bearing construction pump and engine
Built-in discharge check valve
Adjustable discharge valve
Fold-away carrying handles
Exhaust primer
1½" NPT suction
2-1½" NPT or 1-2½" NPT discharges
ENGINE
Briggs & Stratton Vanguard: 4 cycle, 18 HP, V-twin, OHV, 8.35 qt. fuel tank, replaceable oil filter, 34.75 cu. in. displacement, 12-volt starter, recoil rope start back-up, 16 amp regulated alternator

DIMENSIONS
27"L x 21"W x 25"H

WEIGHT
145 lbs. (66 kg)

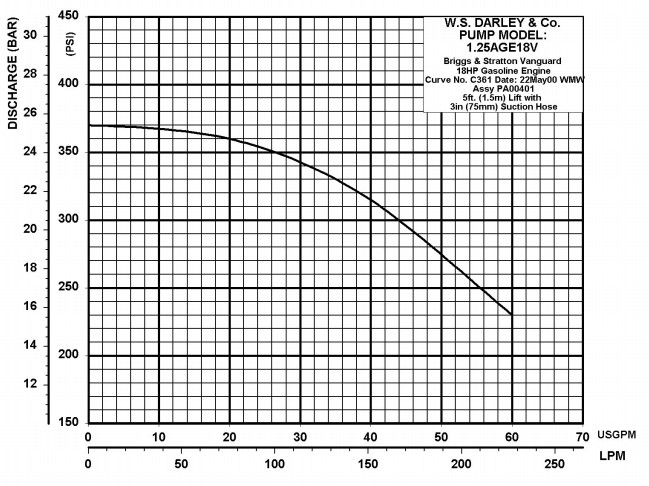

PUMP PERFORMANCE
60 gpm (227 L/M) @ 230 psi (15.9 bar)
40 gpm (151 L/M) @ 315 psi (21.7 bar)
20 gpm (76 L/M) @ 360 psi (24.8 bar)

APPLICATIONS
Booster Reel
Wildland/Attack Fire Suppression

OPTIONS
Deluxe control panel, battery, adapters and caps
