FIRE FIGHTING PUMPS

Product Code : cnk-282

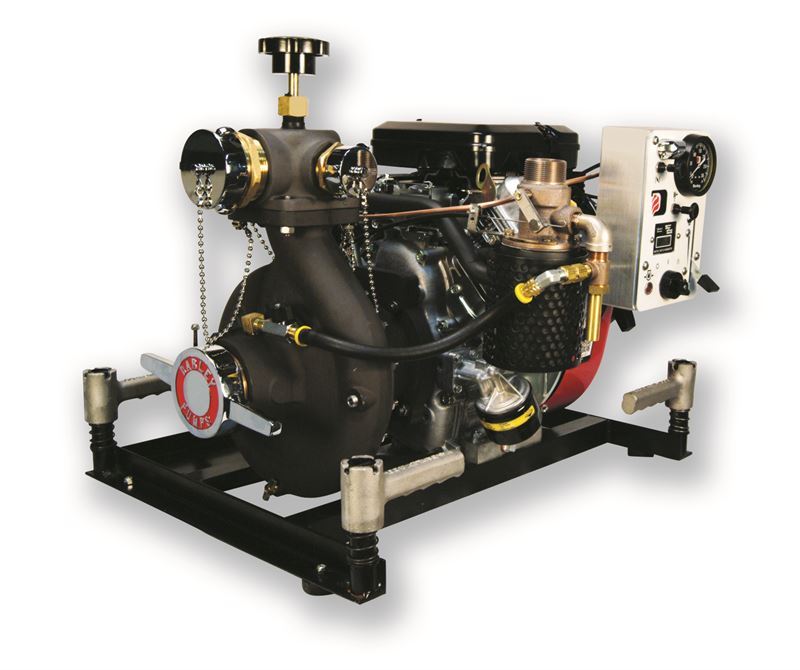

DARLEY 18HP GASOLINE ENGINE PORTABLE PUMP (2BE 18V)

Medium Pressure, High Volume, Direct Drive, Engine Mounted

FEATURES
Bronze impeller and seal ring
Stainless steel impeller shaft
Mechanical seal
Heat treated alloy steel helical gears
Ball bearing construction pump and engine
Built-in discharge check valve
Adjustable discharge valve
Aluminum alloy casing and discharge valve
Aluminum alloy gear case and engine adapter
3" NPT suction
2-1½" NPT or 1-2½" NPT discharges

ENGINE
Briggs & Stratton Vanguard: 4 cycle, 18 HP, V-twin, OHV, 8.35 qt. fuel tank, replaceable oil filter, 34.75 cu. in. displacement, 12-volt starter, recoil rope start back-up, 16 amp regulated alternator

DIMENSIONS
27"L x 21"W x 25"H

WEIGHT
145 lbs. (66 kg)

PUMP PERFORMANCE
375 gpm (1419 L/M) @ 25 psi (1.7 bar)
300 gpm (1136 L/M) @ 45 psi (3.1 bar)
100 gpm (378 L/M) @ 140 psi (9.7 bar))

APPLICATIONS
Booster Reel
Multiple Hand Lines
Wildland/Attack Fire Suppression

OPTIONS
Gauge, battery, adapters and caps
