FIRE FIGHTING PUMPS

Product Code : cnk-281

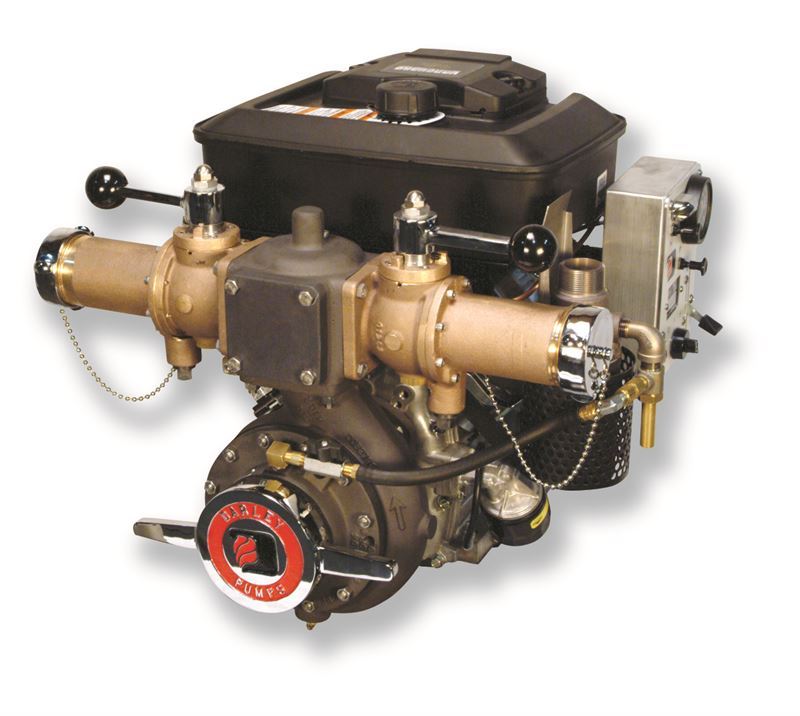

DARLEY 18HP GASOLINE ENGINE PORTABLE PUMP (HE 18V)


Low Pressure, High Volume, Direct Drive, Engine Mounted

FEATURES
Assembly #1
Aluminum alloy casing
Bronze impeller and seal ring
Stainless steel impeller shaft
Mechanical seal
Exhaust primer
Built-in discharge check valve
4" NPT suction
3" NPT discharge
Assembly #2
4" NH suction and screen
1-2½" and 2-1½" NPT discharge head with check valve
Assembly #3
Built-in discharge check valve
4" NH suction and screen
2-1½" NH discharges, 1/4 turn, ball, self-locking, bronze valves

ENGINE
Briggs & Stratton Vanguard: 4 cycle, 18 HP, V-twin, OHV, 8.35 qt. fuel tank, replaceable oil filter, 34.75 cu. in. displacement, 12-volt starter, recoil rope start back-up, 16 amp regulated alternator

DIMENSIONS
27"L x 21"W x 25"H

WEIGHT
215 lbs. (98 kg)

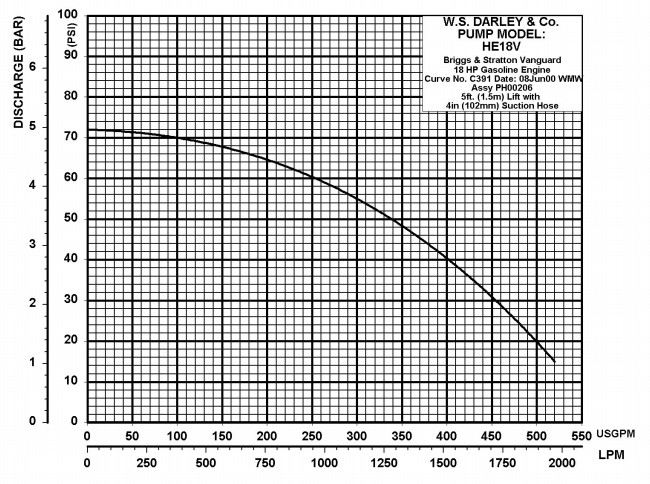

PUMP PERFORMANCE
520 gpm (1968 L/M) @ 15 psi (1.0 bar)
300 gpm (1135 L/M) @ 55 psi (3.7 bar)
100 gpm (378 L/M) @ 70 psi (4.7 bar)

APPLICATIONS
Booster Reel
Transfer and Supply

OPTIONS
Gauge, battery, adapters and caps
