FIRE FIGHTING PUMPS

Product Code : cnk-278

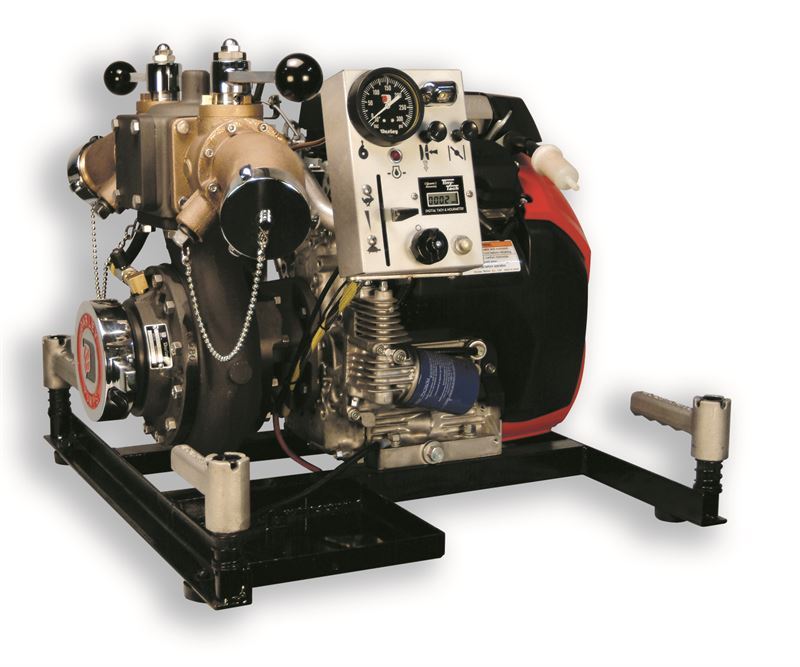

DARLEY 21HP GASOLINE ENGINE PORTABLE PUMP (HE 21H)

Low Pressure, High Volume, Direct Drive, Engine Mounted


FEATURES
Assembly #1
Hard anodized aluminum alloy casing
Bronze impeller and seal ring
Stainless steel impeller shaft
Ceramic coating through stuffing box
Shredded plastallic packing
Fold-away carrying handles
4" NPT suction
3" NPT discharge
Assembly #2
4" NH suction and screen
1-2½" and 2-1½" NPT discharge head
Assembly #3
4" NH suction and screen
2-1½" NH discharges, 1/4 turn, ball, self-locking, bronze valves
ENGINE
Honda GX 630: 4 cycle, 21 HP, V-twin, OHV, replaceable oil filter, 38.5 cu. in. displacement, 12-volt starter, 20 amp regulated alternator

DIMENSIONS
24"L x 24"W x 23"H

WEIGHT
215 lbs. (98 kg))

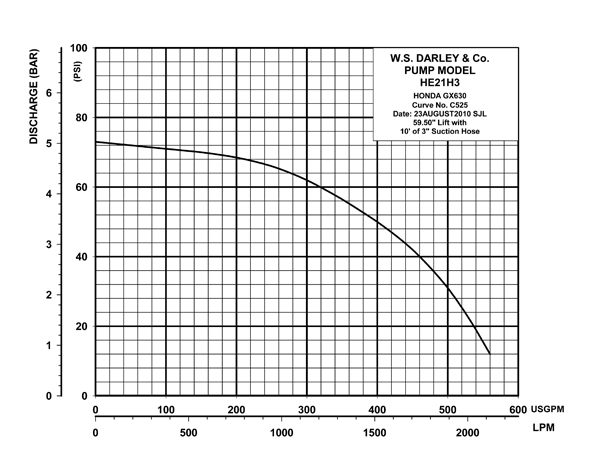

PUMP PERFORMANCE
535 gpm (1987 L/M) @ 20 psi (1.4 bar)
320 gpm (1211 L/M) @ 60 psi (4.1 bar)
100 gpm (378 L/M) @ 70 psi (4.8 bar)

APPLICATIONS
Booster Reel
Transfer and Supply

OPTIONS
Gauge, battery, adapters and caps
