FIRE FIGHTING PUMPS

Product Code : cnk-311

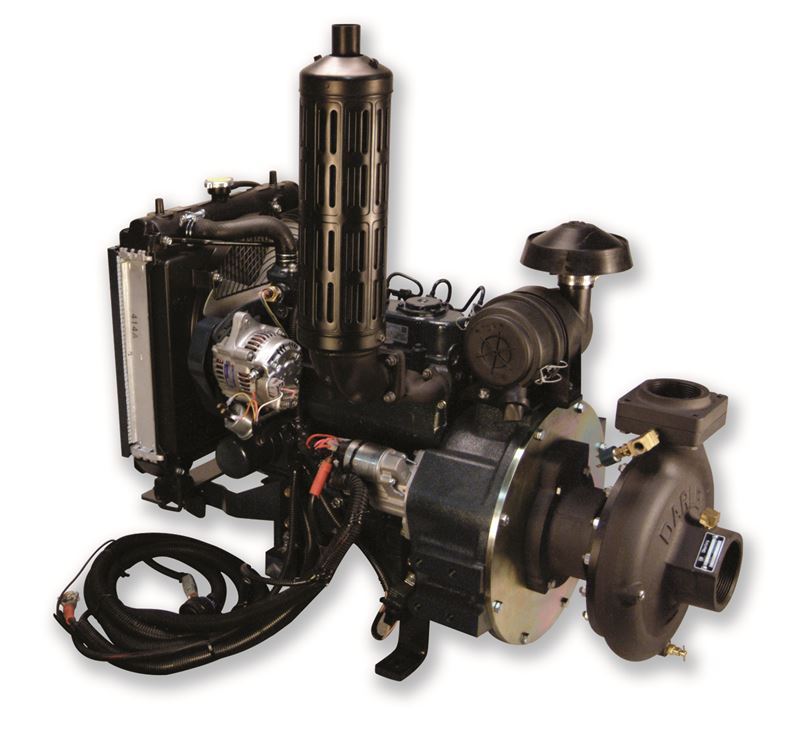

DARLEY 24HP DIESEL ENGINE PORTABLE (2BE 24K)

Medium Pressure, High Volume, Gear Driven, Engine Mounted

FEATURES
Hard anodized aluminum alloy casing
Bronze impeller and wear rings
Stainless steel impeller shaft
Silicon carbide mechanical seal
Heat treated alloy steel helical gears
Ball bearing construction
Adjustable throttle
3" NPT suction
2-1½" NPT and 1-2½" NPT discharges
ENGINE
Kubota D902 Diesel: 24 HP, 3600 rpm, liquid cooled, 12-volt starter, 40 amp alternator, replaceable fuel and oil pump filters

DIMENSIONS
35"L x 23.3"W x 26.3"H (40" w/exhaust)

WEIGHT
386 lbs. (175 kg)

PUMP PERFORMANCE
390 gpm (1476 L/M) @ 20 psi (1.4 bar)
300 gpm (1135 L/M) @ 80 psi (5.5 bar)
200 gpm (757 L/M) @ 115 psi (7.9 bar)

APPLICATIONS
Booster Reel
Multiple Hand Lines
Transfer and Supply
Wildland/Attack Fire Suppression

OPTIONS

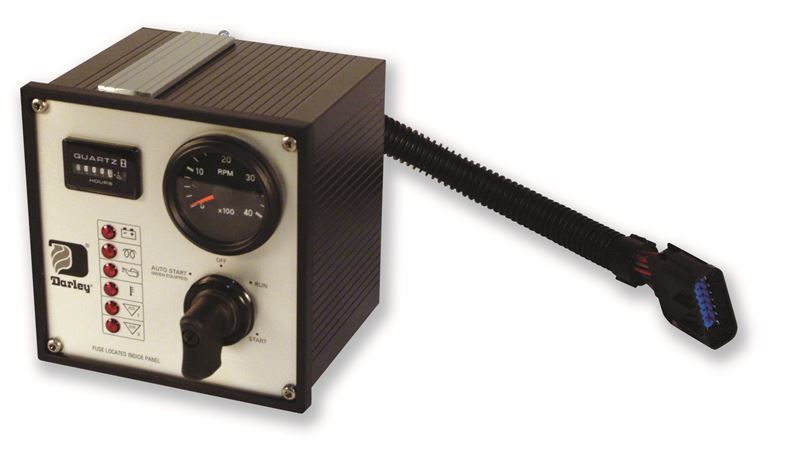

Dual Panels
Electric and manual throttles
Rotary vane primer
