FIRE FIGHTING PUMPS

Product Code : cnk-309

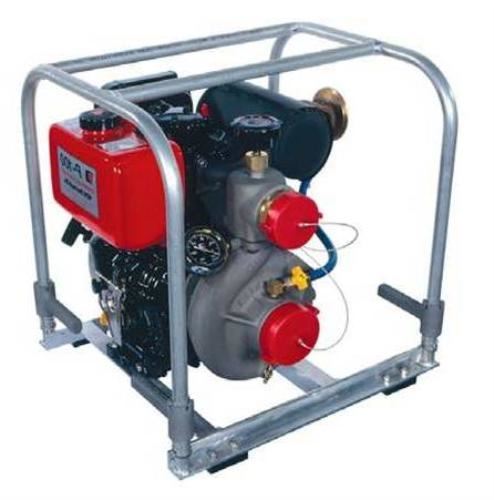

2BE 10YDN (Navy P100), NSN:4320-01-387-2869, FIRE FIGHTING, DAMAGE CONTROL AND DEWATERING PUMP



NAVY P-100 REPLACED NAVY P250



Medium Pressure, High Volume, Engine Mounted



FEATURES

Operates on diesel or jet fuel
Rugged, compact and lightweight
Efficient design for superior performance and reliability
Completely marinized
One-pull start, exhaust-ejector primer, draws water from 21'
Fulfills damage control, dewatering, and fire fighting duties

PASSED rigorous US Navy & Independent Lab Testing

ENGINE
2 BE 10 YDN L100N Engine 4 cycle, air cooled, direct injection,single cylinder, 435cc displacement, rope start, dry replaceable air cleaner, aluminum alloy engine block, 1.24 gallon fuel tank, and exhaust primer

DIMENSIONS
24.5"H x 24"L x 21.5"W

WEIGHT
74kg (163 lbs.)

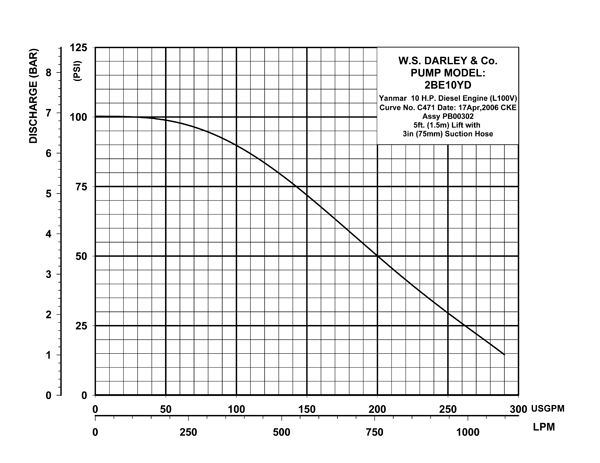

PUMP PERFORMANCE
250 gpm (984 L/M) @ 25 psi (1.4 bar)
180 gpm (681 L/M) @ 60 psi (4.1 bar)
95 gpm (359 L/M) @ 90 psi (6.2 bar)

APPLICATIONS
Booster Tank Fill
Dewatering
Multiple Hand Lines
Transfer and Supply

STANDARD EQUIPMENT
Roll cage
Pressure gauge
Marinization
Adapters
Caps and chains
2-10' x 4" exhaust hoses
Aluminum alloy casing
Discharge head
Engine Adapter
Bronze impeller and wear rings
Stainless steel impeller shaft
Shredded plastallic packing
Discharge check valve
Adjustable discharge valve
Exhaust primer
3" NPT suction
