FIRE FIGHTING PUMPS

Product Code : cnk-297

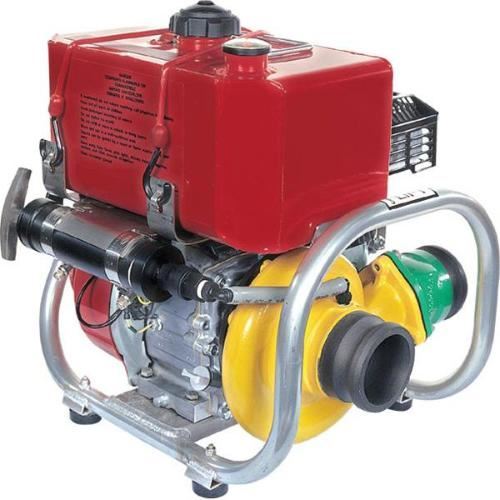

DARLEY 2BE 6.5H (U.S. Coast Guard P6) NSN 4320-01-F99-0342

Portable Damage Control CGP1 Pump
Medium Pressure, High Volume, Direct Drive, Engine Mounted

FEATURES
Air cooled 4-stroke OHV
Single-cylinder
Horizontal shaft
6.5 HP (4.8kW 3600 rpm) max
Torque 1.35kg-m/2,500 rpm
Transistorized pointless ignition system
Recoil starting system
Fuel tank capacity 6 qt.
Dual silent air cleaner
2011 Carb and EPA Compliant
3" cam lock suction
3" cam lock discharge
ENGINE
Honda Model GX200: Air-cooled 4 stroke OHV, ENGINE single cylinder, 6.5 HP, recoil rope start back-up

DIMENSIONS
18"L x 16"W x 19"H

WEIGHT
49 lbs. (22 kg)

PUMP PERFORMANCE
275 gpm (1040 L/M) @ 12 psi (0.8 bar)
175 gpm (662 L/M) @ 28 psi (1.9 bar)
100 gpm (378 L/M) @ 45 psi (3.1 bar)

APPLICATIONS
Dewatering
Light Duty Brush Truck
Transfer and Supply

OPTIONS
Discharge hose
Container and cover
Adapters
Suction hose with strainer
Contact Darley for Coast Guard model specification
