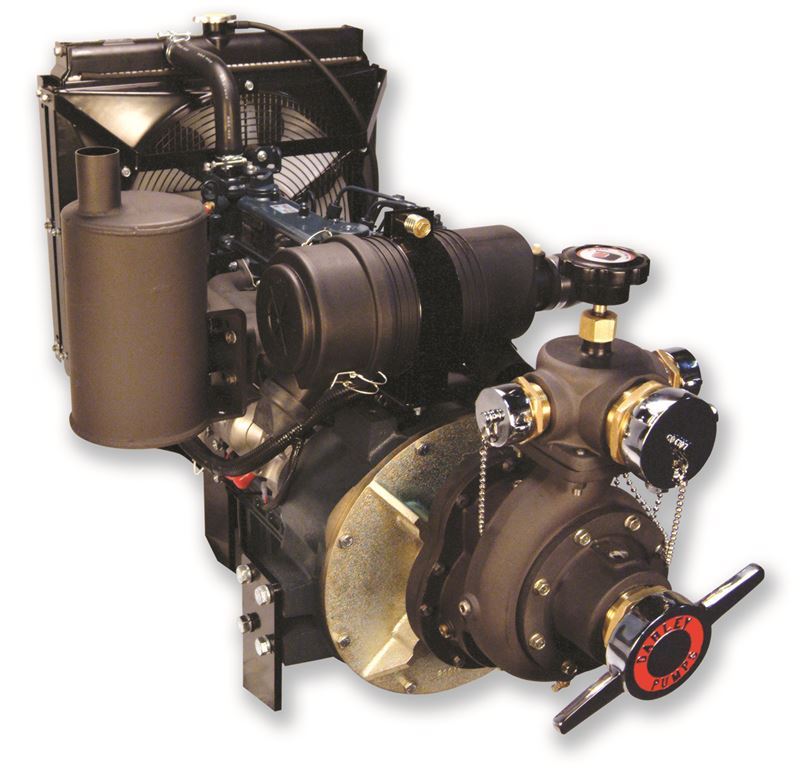

DARLEY 42HP DIESEL ENGINE PORTABLE (2-1/2AGE 42K)

FIRE FIGHTING PUMPS

DARLEY 42HP DIESEL ENGINE PORTABLE (2-1/2AGE 42K)

Medium Pressure, Medium Volume, Gear Driven, Engine Mounted

FEATURES

Aluminum alloy casing and discharge valve

Anodized aluminum alloy gear case

Bronze impeller and wear rings

Stainless steel impeller shaft

Heat treated alloy steel helical gears

Ball bearing construction

Adjustable throttle

2" NPT suction

2-1½" or 1-2½" NPT discharge

ENGINE

Kubota V1505 Diesel: 42HP, 4 cylinders, liquid-cooled, 12-volt, electric start, 40 amp alternator, pressure lubed, oil and fuel pump filters

DIMENSIONS

41"L x 24"W x 421/2"H

WEIGHT

528 lbs. (240 kg)

PUMP PERFORMANCE

275 gpm (1040 L/M) @ 160 psi (11 bar)

175 gpm (662 L/M) @ 215 psi (14.8 bar)

75 gpm (283 L/M) @ 230 psi (15.8 bar)

APPLICATIONS

Booster Reel/Booster Tank Fill

Multiple Hand Lines

Wildland/Attack Fire Suppression

OPTIONS

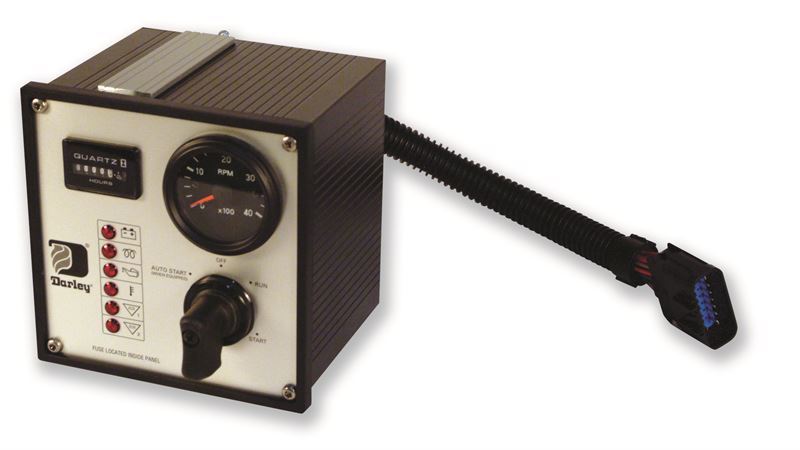

Dual Panels

Electric and manual throttles

Rotary vane primer
