FIRE FIGHTING PUMPS

Product Code : cnk-301

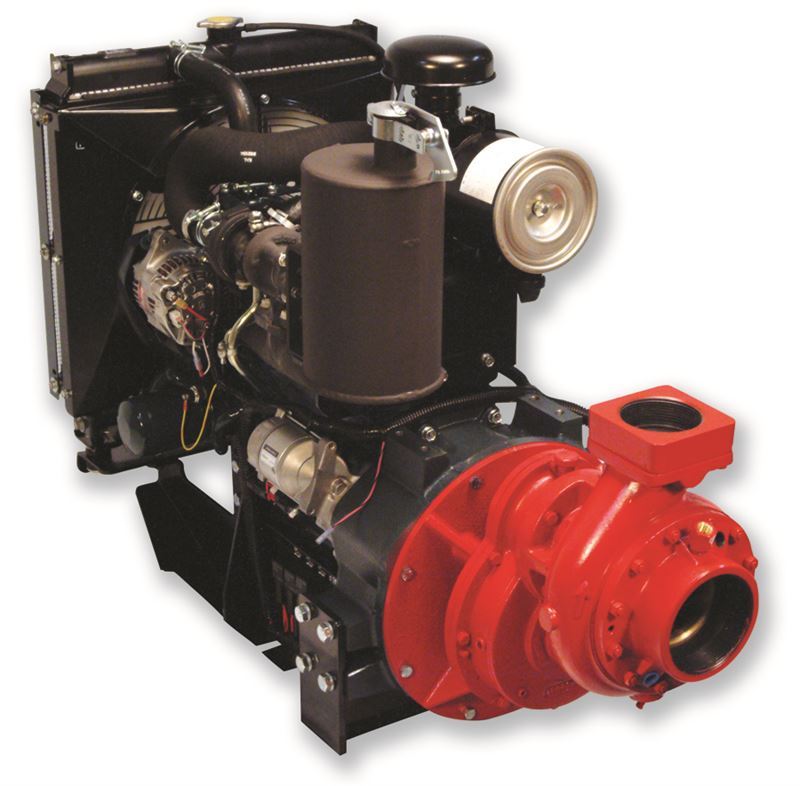

DARLEY 42HP DIESEL ENGINE PORTABLE (HE42K)

Medium Pressure, High Volume, Gear Driven, Engine Mounted

FEATURES
Assembly #1
Cast iron casing
Bronze impeller and seal ring
4" NPT suction
3" NPT discharge

Assembly #2
4" NH suction and screen
1-2½" and 2-1½" NPT discharge head with check valve

Assembly #3
4" NH suction and screen
2-2½" NH discharges, ¼ turn, ball, self-locking, all bronze valves

Control panel for remote mounting with gauge, throttle control, engine warning lights and start/stop

ENGINE
Kubota V1505T Diesel: 42 HP turbo diesel, 4 cylinder, liquid-cooled, 12-volt starter, 40 amp alternator, oil and fuel pump filters

DIMENSIONS
37"L x 20"W x 31"H

WEIGHT
490 lbs. (222 kg)

PUMP PERFORMANCE
600 gpm (2271 L/M) @ 40 psi (2.7 bar)
300 gpm (1135 L/M) @ 135 psi (9.3 bar)
250 gpm (946 L/M) @ 150 psi (10.3 bar)

APPLICATIONS
Dewatering
Booster Tank Fill
