FIRE FIGHTING PUMPS

Product Code : cnk-299

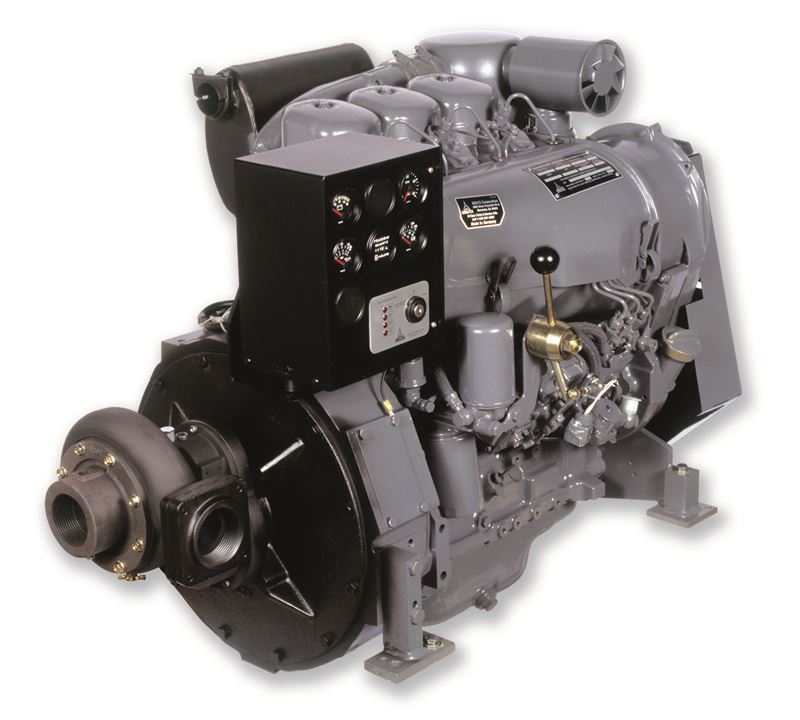

DARLEY 57HP DIESEL ENGINE PORTABLE (2-1/2AGE 250DTZ)

Single Stage, Engine Driven, Centrifugal Pump

FEATURES
Aluminum alloy casing
Aluminum alloy gear case and engine adapter
Bronze impeller and wear rings
Stainless steel impeller shaft
Mechanical seal
Heat-treated alloy steel helical gears
Ball bearing construction
Heavy duty air cleaner
Engine control panel
Tachometer
Hour meter
Oil pressure gauge
Ammeter
Throttle
Muffler
Start/stop key switch
2½" NPT suction
2½" NPT flanged discharge

ENGINE
Deutz D914L03 Diesel: 57 HP, air-cooled, 12 volt, electric starter, alternator

DIMENSIONS
36.36"L x 27.4"W x 31.3"H

WEIGHT
925 lbs. (419.5 kg)

PUMP PERFORMANCE
250 gpm (946 L/M) @ 150 psi (10.3 bar)
175 gpm (662 L/M) @ 200 psi (13.8 bar)
125 gpm (473 L/M) @ 250 psi (17.2 bar)

APPLICATIONS
Meets 250 gpm @ 150 psi for Type 2 Structure engines
Meets 150 gpm @ 250 psi for Type 3 Wildland engines

OPTIONS
1) 2-1/2AGE 250CM
Cummins B3.3 Diesel: 60 HP, liquid cooled, 12 volt electric starter, alternator
53.44"L x 27.88"W x 58.83"H, 700 lbs. (317.5 kg)

2) 2-1/2AGE 250JD
John Deere 4024HF295 Diesel - 61 HP, 4 cycle, liquid cooled, 12 volt, electric starter, alternator
6"L x 28.6"W x 531/2"H, 825 lbs. (374.2 kg)
