FIRE FIGHTING PUMPS

Product Code : cnk-268

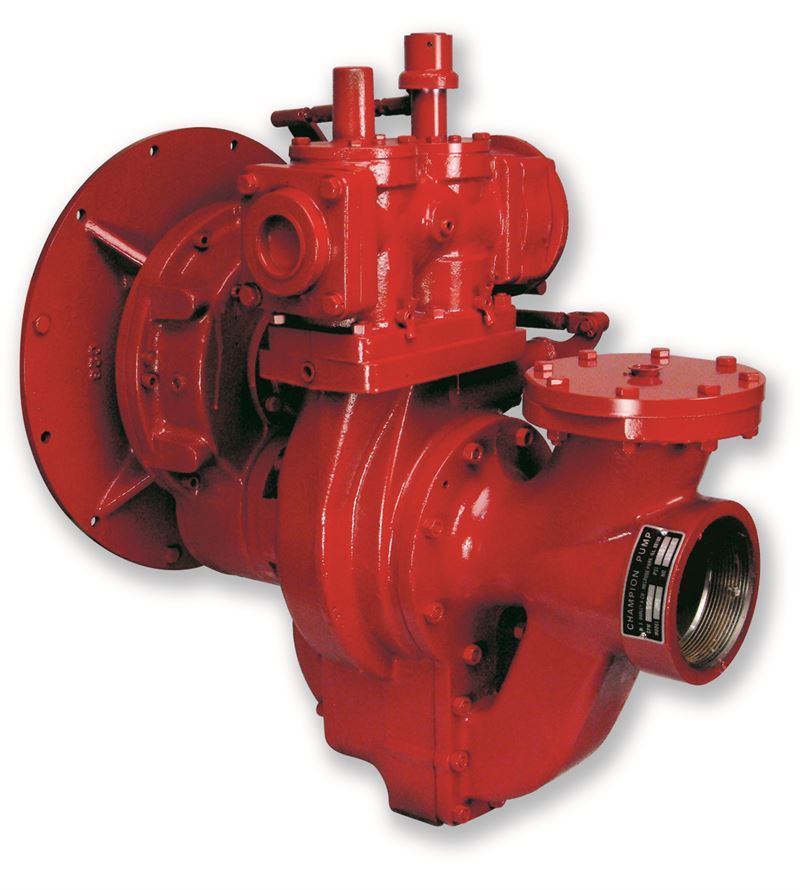

DARLEY JME 500, 500 NH ENGINE MOUNT

Single Stage, Centrifugal, Engine Mounted

FEATURES
Vertically split, cast iron bronze fitted pump casing
Impellers opposed design to eliminate end thrust
Broached impeller (not keyed) for longer life
Oversized, deep groove radial type bearings for longer life
10 tooth splined shaft for durability
Chrome plated transfer valve
3-2½" NPT discharge flanges
3-4" NPT suction taps
Gear ratio to suit engine
DIMENSIONS&WEIGHT
25"L x 12"W x 26"H
250 lbs. (114 kg)
APPLICATIONS
Mini Pumper
Pump & Roll
Wildland/Attack Fire
Tanker






PUMP PERFORMANCE JME 500
500 gpm (1893 L/M) @ 150 psi (10.3 bar)
375 gpm (1325 L/M) @ 200 psi (13.8 bar)
250 gpm (946 L/M) @ 250 psi (17.2 bar)
100 gpm (378 L/M) @ 500 psi (34.5 bar)





PUMP PERFORMANCE JME 500 NH



Normal Pressure, High Pressure) Simultaneous for normal pressure, high pressure
525 gpm (2000 L/M) @ 295 psi (7.0 bar)
100 gpm (378 L/M) @ 290 psi (20.0 bar)
