FIRE FIGHTING PUMPS

Product Code : cnk-263

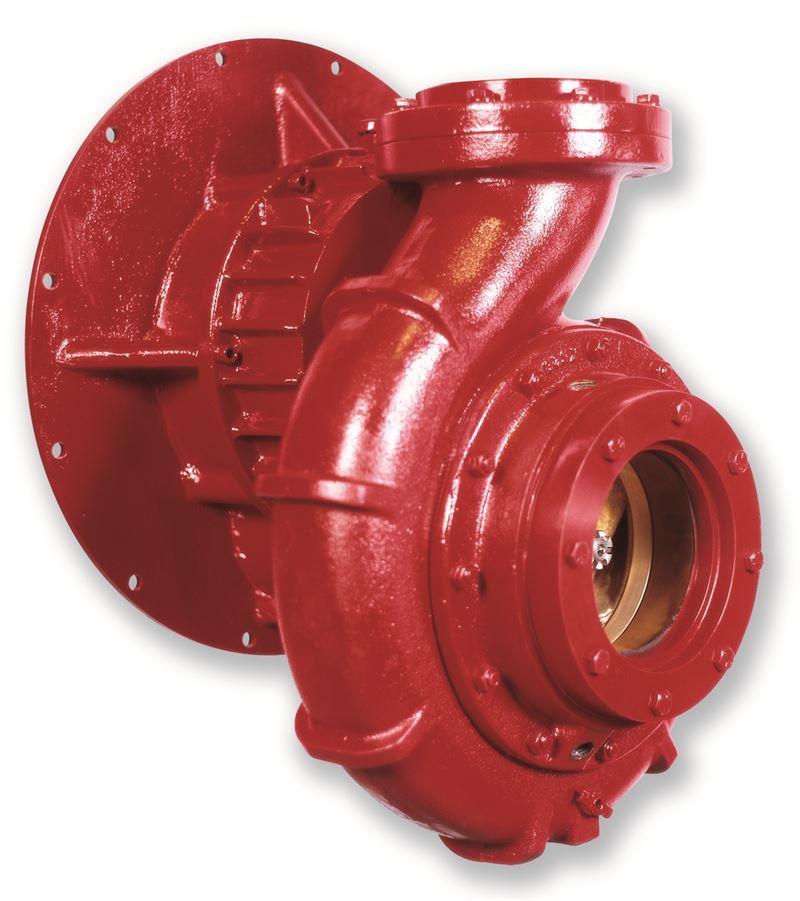

DARLEY LSE 500 ENGINE MOUNT PUMP

Single Stage, Centrifugal, Single Suction Impeller, 2 Gear Gearcase, Engine Mounted

FEATURES
Vertically split, cast iron bronze fitted pump casing
Impellers opposed design to eliminate end thrust
Broached impeller (not keyed) for longer life
Oversized, deep groove radial type bearings for longer life
10 tooth splined shaft for durability
Chrome plated transfer valve
4" NPT discharge
5" or 6" weld flange suction
Uses standard SAE engine adapter

DIMENSIONS

16"L x 17"W x 17"H
235 lbs. (107 kg)
PUMP PERFORMANCE
500 gpm (1893 L/M) @ 150 psi (10.3 bar)
350 gpm (1325 L/M) @ 200 psi (13.8 bar)
250 gpm (946 L/M) @ 250 psi (17.2 bar)

APPLICATIONS
Fire Boat
Mini Pumper
Pumper
Wildland/Attack Fire
PUMP PERFORMANCE LSE 500
500 gpm (1893 L/M) @ 150 psi (10.3 bar)
350 gpm (1325 L/M) @ 200 psi (13.8 bar)
250 gpm (946 L/M) @ 250 psi (17.2 bar)

PUMP PERFORMANCE LSE 750
750 gpm (2839 L/M) @ 150 psi (10.3 bar)
525 gpm (1987 L/M) @ 200 psi (13.8 bar)
375 gpm (1419 L/M) @ 250 psi (17.2 bar)

PUMP PERFORMANCE LSE 1000
1000 gpm (3785 L/M) @ 150 psi (10.3 bar)
700 gpm (2646 L/M) @ 200 psi (13.8 bar)
500 gpm (1893 L/M) @ 250 psi (17.2 bar)
