FIRE FIGHTING PUMPS

Product Code : cnk-310

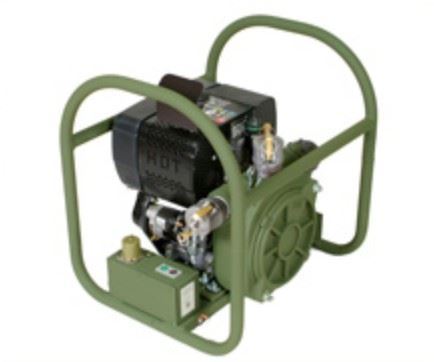

DARLEY(OHLER) 6.1HP DIESEL ENGINE, FUEL TRANSFER PORTABLE PUMP(150AAMCFP-1B30CS)

NSN : 4320-01-547-8729, PN :  150AAMCFP-1B30CS

568L/DK (150galon) FUEL BUSTER, SUPPLY PUMP

FEATURES
2" x 2" Pump
2" Priming Port
150 GPM @ 60 FT Total Head
5.31" Diameter Impeller
Static Suction Lift in Less than 2 MIN at 10"
Static Suction Lift in Less than 5 MIN at 25"
PASSED rigorous US Marine Corps & Independent Lab Testing
ENGINE
6.1 HP (Continuous) at 3600 RPM,
Air Cooled,
Single Cylinder
4-Stroke
Diesel Engine,
Fuel Capacity for 2.5 Hours of Operation at Rated Load,
Encorporates a 24V Starter and Glo-Plug for Low Temperature Assist Starting (Recoil Start Backup)

PUMP PERFORMANCE
568L/DK (150galon) fuel buster, supply 60ft total head

MATERIAL
Pump Case, Inlet Flange, Volute, Impeller and Wear Plate are Sand Cast Aluminum and are Heat Treated
Quick Couplings are Anodized Aluminum
Shaft Extension and Metal Seal Components Constructed of Stainless Steel
Self Lubricating Mechanical Shaft Seal
