Euramcosafety

FOG, LOW-LYING FOG, HAZE, BUBBLES, SNOW, DRY ICE AND SIMULATED FLAMES

Product Code : cnk-524

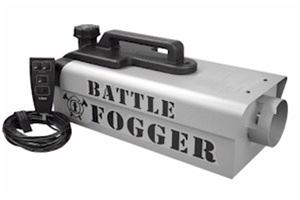

Battle Fogger Fire Training Fog/Smoke Simulator Machine
NSN : 4210015349225, 4210-01-534-9225, PN : CLF4250PTN

Continuous fog output from our Rapid Change Technology Heat Exchanger. The Battle Fogger incorporates a large heating block, a strong whisper-quiet pump and our award-winning Rapid Change Technology. The machine has a large one-gallon integrated fluid tank that prevents leaks and drips, a built-in handle, special hammer-tone finish that resists scratching and wear and a built-in 4” hose adapter.

The Battle Fogger has our standard 2-Year Warranty on all parts and service and a Lifetime Warranty on the heat exchanger.

Features

  • Continuous Fog Output
  • Rapid Change Heat Exchanger Design
  • Microprocessor Controlled
  • Heavy Duty Powder Coated Chassis
  • Electromechanical Over Temperature Protection
  • One-Gallon "No Leak" Integrated Fluid Reservoir
  • Includes a Rapid Change Replacement Kit
  • Illuminated Fog Ready Switch on the Remote

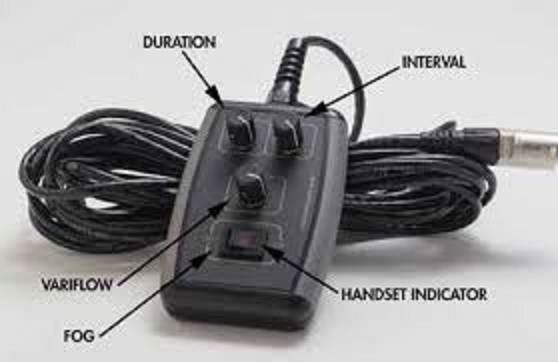

  • Includes Full Function Timer Remote Control


Output

Run Time: Continuous
Reheat Time: 9 min. Initial
Fluid Consumption: Burst: 114 cc/min. - Continuous: 47 cc/ min.
Technical Benchmark Spec.: 3,290 cfm @ 1 meter visibility
Competitive Comparison: 15,000 cfm


Specifications

Length: 22 in / 56 cm
Width: 9 in / 23 cm
Height: 10 in / 25 cm
Net Weight: 25 lbs / 11 kgs
Net Weight/w Fluid: 35 lbs / 16 kgs
Power Cord: 6 ft - 1.8 m
Heater Watts: 1,250 Watts
Rating: 10 amps @110 volts @ 50/60 hz
Regulatory Compliance: This product has been certified to CSA/UL Standards by QPS Canada Inc.



SAFE FOR USE ON LIVE STAGE PERFORMANCES
Our fluid has been included in the "Equipment Based Guidelines for the Use of Theatrical Smoke and Haze" that has been prepared with the support of Equity League Pension and Health Trust Funds et al., and can be used in compliance with ANSI standards for theatrical fog and the PLASA (previously ESTA) Fog Testing Program.

To view the Calibration Factors for Monitoring Theatrical Smoke, Fog and Haze please see the "Downloads" section further down this page.

Recommended Fluid

CFF-8000 : 4L Safety Heavy Smoke Fluid,
CFF-8005 : 4L Longer Lasting Smoke Fluid,
CFF-8010 : 4L Fire & Safety Quick Dissipating Smoke Fluid
CFF-2501 : 4L Maxi Fog Fluid
