Product Code : cnk-234

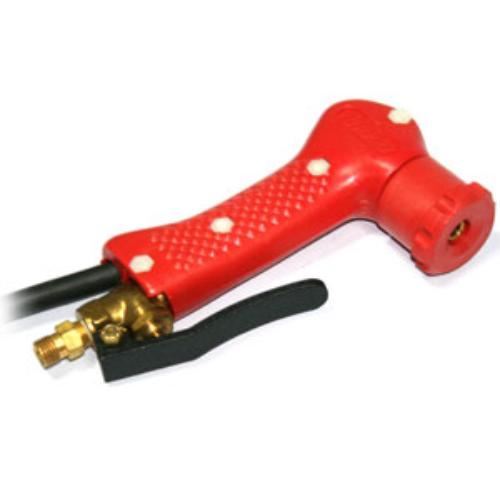

BROCO BR-22 Underwater Cutting Torch

  • Ergonomically designed for diver comfort
  • High-impact and corrosion resistant materials
  • The BR-22 Cutting Torch is ergonomically designed for diver comfort and reducing forearm fatigue.
  • The torch is constructed from durable high-impact and corrosion resistant materials. Most metal parts are brass.
  • The non-conductive flexible coupler joining the oxygen control valve to the torch head is a key safety feature, unique in design and found only in Broco torches.
  • Broco torches are easy to maintain.
  • The flash arrestor is brass with an internal filter screen.
  • The large collet nut is knurled to assure the diver a solid grasp.
  • Acme threads prevent binding from mud or other debris insuring quick, reliable rod insertion and retention. Interchangeable collets accommodate 3/8" and 1/4" diameter cutting rods.
  • The BR-22 can also be used as a welding electrode holder.
  • The BR-22 Cutting Torch is built to deliver years of trouble-free performance at minimum cost. Spare parts kits are available.

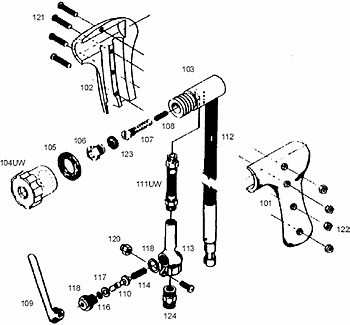

Product No. Description
101/102 Handle Set
103/112 Torch Head & Cable Assembly
104UW Collet Nut
105 Compression Washer (Neoprene)
106 Collet (Specify Size)
107 Flash Arrestor
108 Flash Arrestor Screen
109 Oxygen Valve Lever
110 Valve Stem (Includes O-Ring)
111UW Coupler Assembly
113 Oxygen Valve Body
114 Valve Stem Spring
115 Oxygen Valve Nut
116 Valve Stem O-Ring
117 Valve Stem Washer (Neoprene)
118 Valve Nut O-Ring
119/120 Valve Lever Screw & Locknut
121/122 Handle Screws & Nuts (Nylon)
123 Collet Washer (Neoprene)
124 Oxygen Hose Adapter Fitting
